Sticking on GT2 RS Logo

  1. Clean the surface (door) by washing it with a non-lubricating cleaning agent.
  2. Immediately before you stick on the decorative film, wash off the areas on which you intend to stick the logo using spirits or alcohol to ensure that all traces of silicon, grease and oil are completely removed.
  3. Pull off protective film and position, align and affix the logo -2-  on the door -1-  .

    Use the dimensions (-A= 32 mm-  ) and (-B= 27 mm-  ) as a guide.

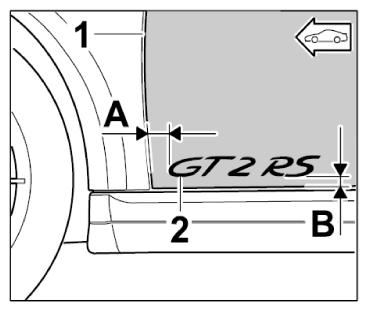

    Fig 1: Sticking On GT2 RS Logo Dimension
    G09826909Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press on the logo using strong, overlapping strokes (plastic spatula).
  5. Check the logo for bubbles and creases. Press the air out of any bubbles you find using the plastic spatula.
