WM 663619 Removing And Installing Roof Joint Cover Strop (C-Pillar Cover) (911 TARGA 4, 911 TARGA 4S)
>>
Removing Roof Joint Cover Strip (C-Pillar Cover)
Removing Roof Joint Cover Strip (C-Pillar Cover)

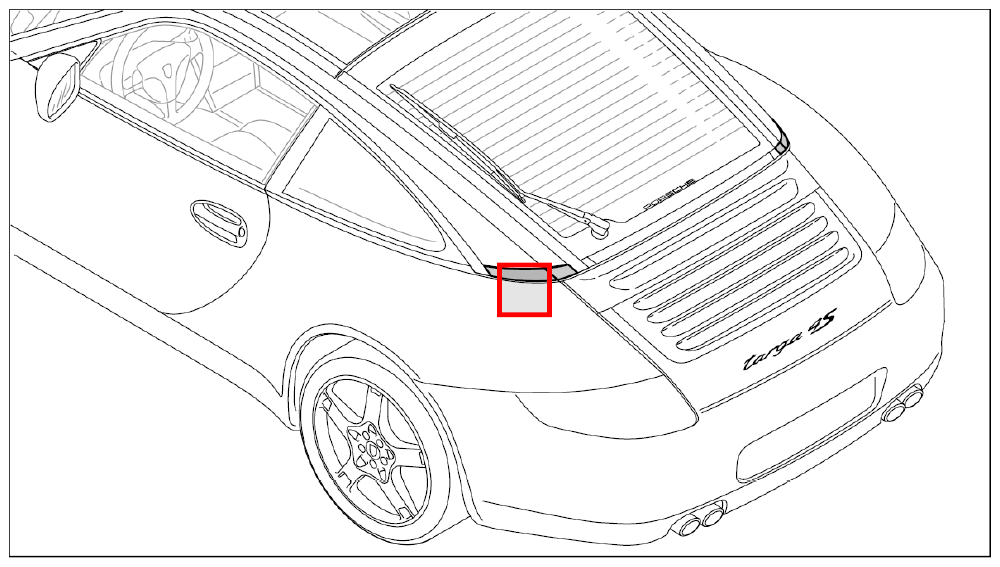

Fig 1: Position Of Roof Joint Cover Strip (C-Pillar Cover)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a plastic wedge under the roof joint cover strip (C-pillar cover)
-1-
and press roof joint cover strip (Cpillar cover)
-1-
out
-Arrow-
.

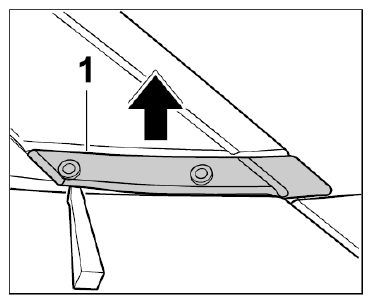

Fig 2: Roof Joint Cover Strip (C-Pillar Cover)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
