Removing Side-Section Trim

Fig 1: Identifying Side-Section Trim Position
G09826773Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove side-section trim -2-  .
    Fig 2: Removing Side-Section Trim
    G09826774Courtesy of PORSCHE CARS NORTH AMERICA, INC.

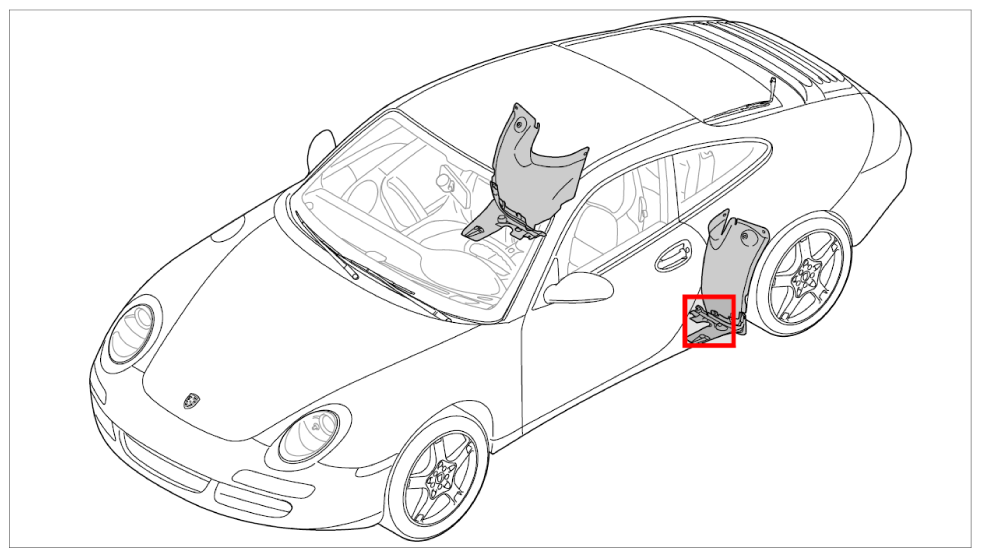

Fig 1: Identifying Side-Section Trim Position
G09826853Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove side-section trim -2-  .

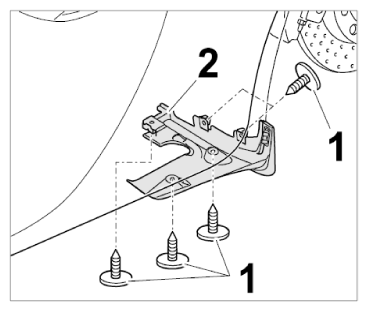

    Fig 2: Removing Side-Section Trim
    G09826854Courtesy of PORSCHE CARS NORTH AMERICA, INC.
