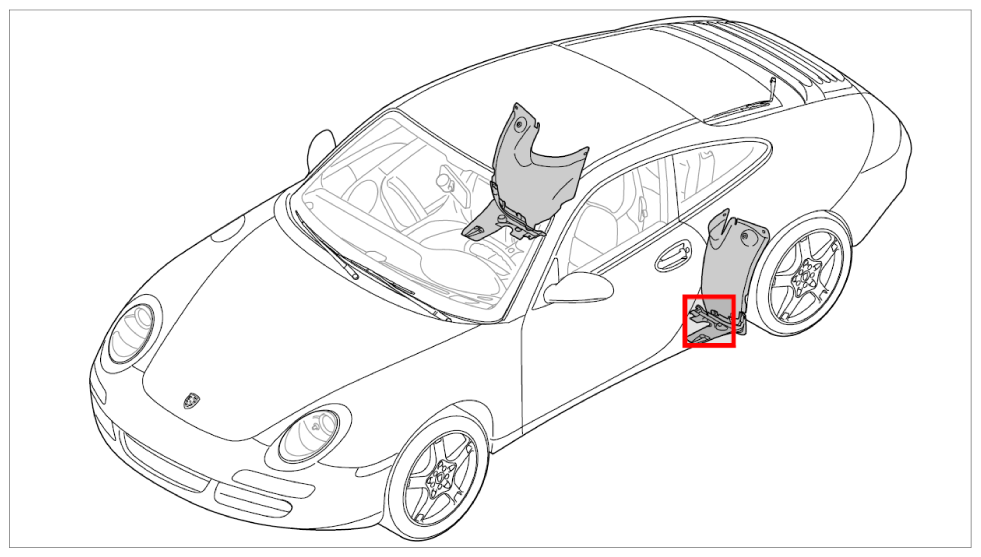

Installing Side-Section Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

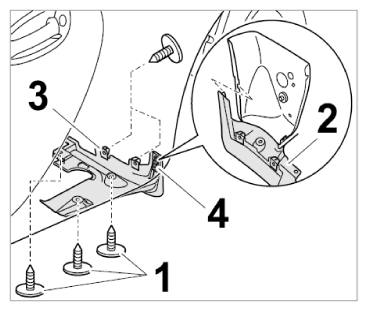

- Check sheetmetal nuts -3-
for deformation, replacing if necessary -3-
.
- Insert side-section trim -2-
and push retaining clip -4-
into side panel.
- Screw in fastening screws -1-
and tighten to specified tightening torque → : 1.5 ftlb.
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Check sheetmetal nuts -3-
for deformation, replacing if necessary -3-
.
- Insert side-section trim -2-
and push retaining clip -4-
into side panel.
- Screw in fastening screws -1-
and tighten to specified tightening torque → : 1.5 ftlb.
.
