Removing Front Logo

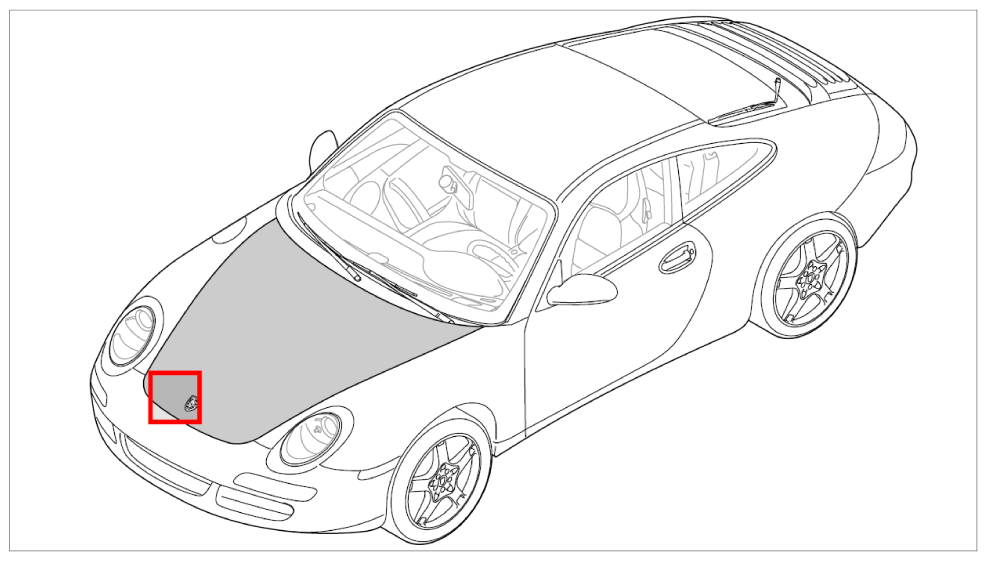

Fig 1: Overview Of Front Lid
G09826816Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open front lid.
  2. Unscrew fastening nuts -3-  .
  3. Remove logo -1-  and washer -2-  .

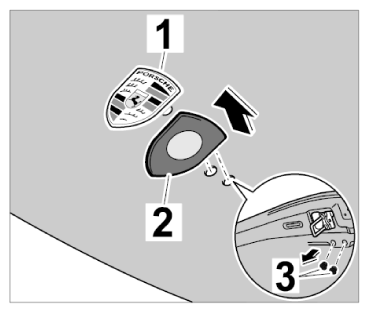

    4. Fig 2: Removing Front Logo
    G09826817Courtesy of PORSCHE CARS NORTH AMERICA, INC.
