Removing Air Grille At The Sides

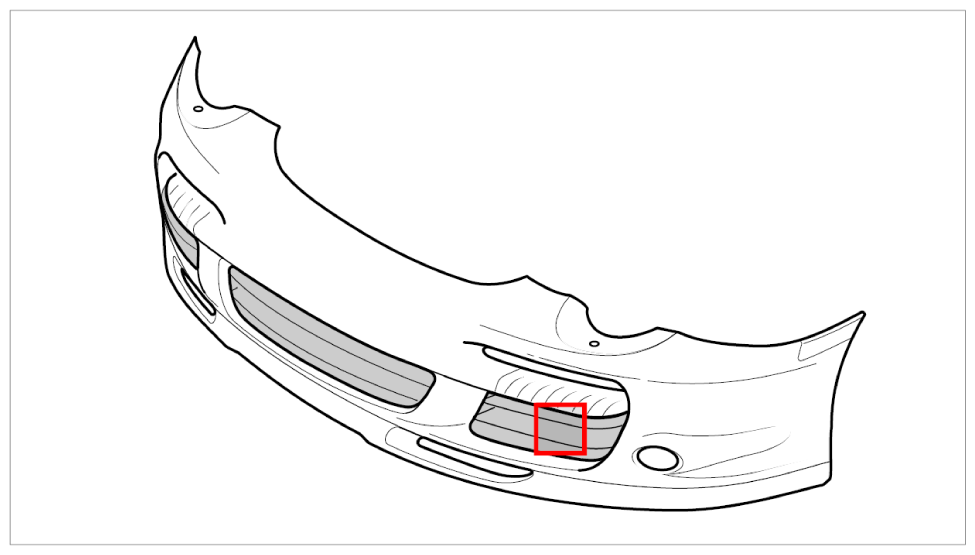

Fig 1: Identifying Front Air Grille Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

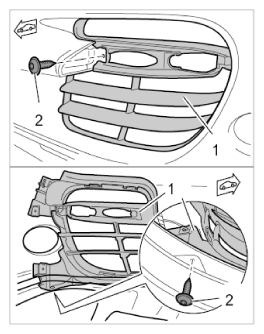

Unscrew fastening screws -2- on air grille -1- .

Fig 2: Identifying Fastening Screws On Air Grille At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

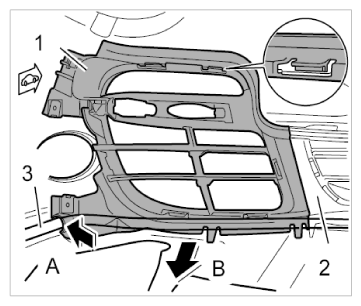

Insert a screwdriver between the front apron -2- and air grille -1- and release the locking lugs.
Disengage water hose -3- on the air grille -1- (-Arrow A- ) and remove air grille -1- (-Arrow B- ).

Fig 3: Removing Air Grille At Sides

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
