Installing Centre Air Grille

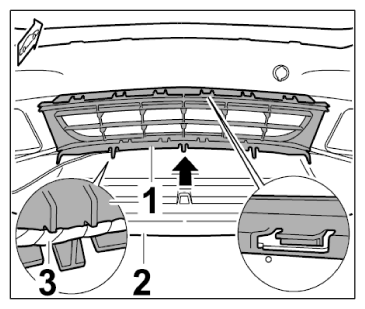

- Position air grille -1-
and engage wire harness -3-
(-inset-
).
- Position the air grille -1-
in the pins on the front apron -2-
all the way around -arrow-
and press it in until the locking lugs engage securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
