Installing Air Grille At The Sides

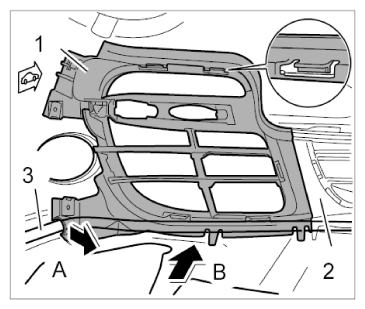

  1. Position the air grille -1-  on the front apron -2-  and attach the water hose -3-  (-arrow A-  ).
  2. Press the air grille -1-  into the front apron -2-  (-arrow B-  ) until the locking lugs engage securely.
    3. Fig 1: Installing Air Grille At Sides
    G09826753Courtesy of PORSCHE CARS NORTH AMERICA, INC.

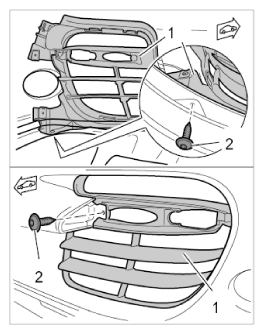

  3. Secure the air grille -1-  with the fastening screws -2-  .
    Fig 2: Securing Air Grille At Sides With Fastening Screws
    G09826754Courtesy of PORSCHE CARS NORTH AMERICA, INC.
