Installing Front Spoiler

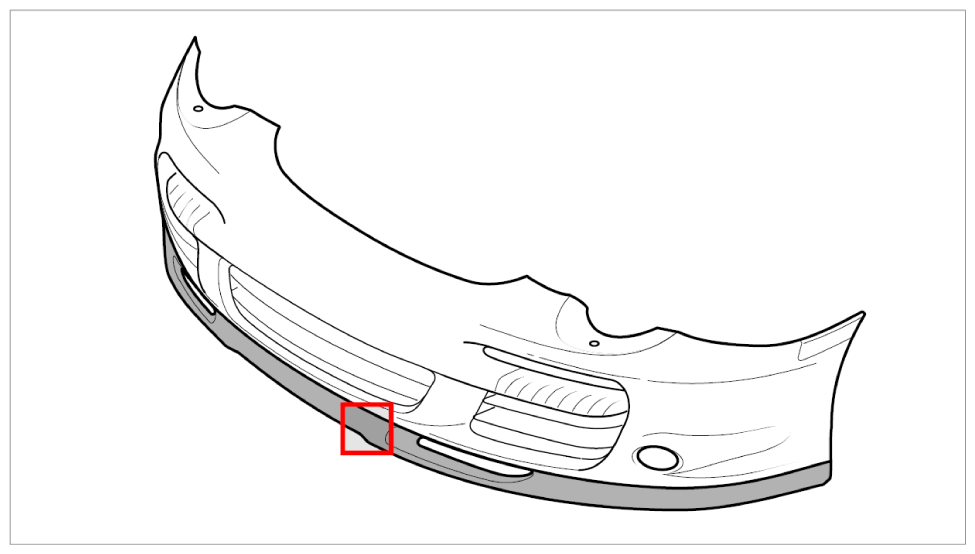

Fig 1: Identifying Front Spoiler Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The front spoiler must be secured outwards starting at the center.

1. Position the front spoiler -1-  on the front apron -2-  (-Arrow A-  ) and press in until the locking lugs engage -Arrow B-  .

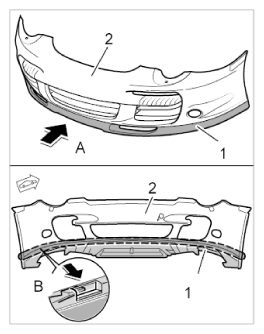

   Fig 2: Installing Front Spoiler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
