Separating Glass As Far As P5

Information

• The fastening force can be increased by moistening the fastening intake.

1. Release spooling device.

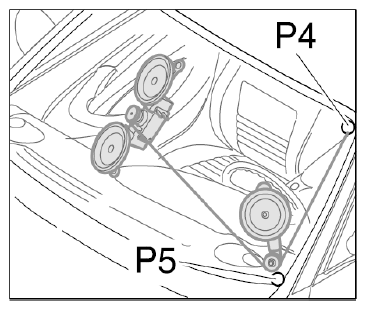

   Fig 1: Separating Glass As Far As P5

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position deflection roller in the lower left corner.
3. Press deflection roller with fastening intake firmly against the glass.
4. Fix fastening intake onto the glass by moving the actuating lever.
5. Pass cutting thread over the deflection roller onto the spooling device.
6. Separate glass by spooling the cutting thread on the spooling device as far as point -P5-  .
7. Remove the windscreen.
