Separating Glass As Far As P4

Information

• The fastening force can be increased by moistening the fastening intake.

1. Position deflection roller in the upper left corner.

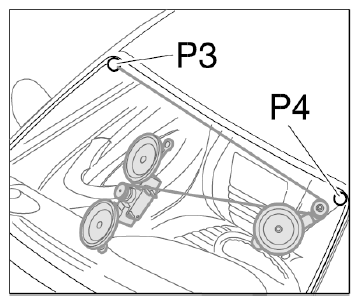

   Fig 1: Separating Glass As Far As P4

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press deflection roller with fastening intake firmly against the glass.
3. Fix fastening intake onto the glass by moving the actuating lever.
4. Pass cutting thread over the deflection roller onto the spooling device.
5. Separate glass by spooling the cutting thread on the spooling device as far as point -P4-  using the guide rails.
