Repositioning Spooling Device

  1. Release spooling device.

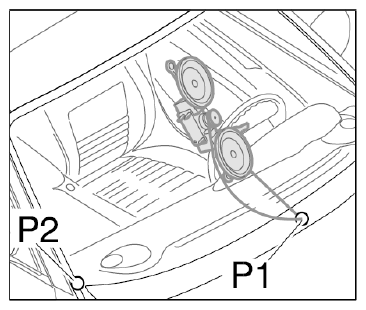

    Fig 1: Repositioning Spooling Device
    G09824392Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the lower fastening intake on the spooling device.
  3. Pull cutting thread through onto the other side of the fastening intake.
  4. Fix fastening intake onto the glass by moving the actuating lever.


  1. Release spooling device.

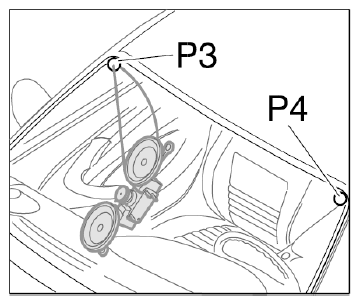

    Fig 1: Repositioning Spooling Device
    G09824395Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the upper fastening intake on the spooling device.
  3. Pull cutting thread through onto the other side of the fastening intake.
  4. Fix fastening intake onto the glass by moving the actuating lever.
