Installing Spooling Device And Deflection Rollers On The Glass

  1. Position spooling device -A3-  diagonally in the center of the glass.

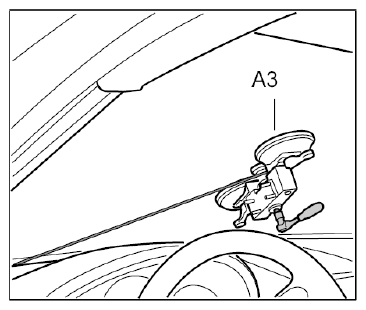

    Fig 1: Installing Spooling Device And Deflection Rollers On Glass
    G09824390Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press spooling device -A3-  with the fastening intakes firmly against the glass.
  3. Fix fastening intake onto the glass by moving the actuating lever.
