Guiding Cutting Thread Into The Passenger Compartment

Information

• In order to prevent damage, make sure that the vehicle identification number is completely covered by the protective film when pushing through the adhesive bead.
• Warm awl beforehand with the hot-air gun for pushing this through.

1. Push through adhesive bead on the glass on the edge of the vehicle identification number -C-  with the awl -A4-  from the inside to the outside.

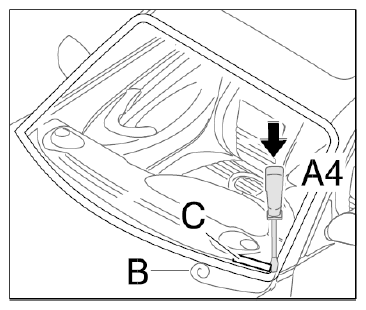

   Fig 1: Guiding Cutting Thread Into Passenger Compartment

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pass cutting thread -B-  through the eyelet on the awl -A4-  .
3. Pull cutting thread -B-  into the passenger compartment.
4. Pull cutting thread -B-  out of the awl -A4-  .
5. Draw cutting thread -B-  approx. 1m into the passenger compartment.
