Guiding Cutting Thread Into The Gap In The Glass

Information

• The cutting thread should be positioned under the rim as far as possible. The sealing lip must be raised slightly in the upper part of the glass in order to pull the cutting thread through.

1. Pull cutting thread -B-  in the direction of the arrow through the gap between the glass and the body. Use filler if necessary.

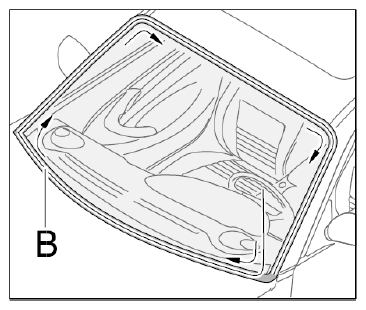

   Fig 1: Guiding Cutting Thread Into Gap In Glass

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
