Cutting Power When Removing Glass With Cutting Thread

Information

• The power for separating the glass is weaker when the cutting thread is deflected to its maximum point. An angle greater than 90° should be avoided.

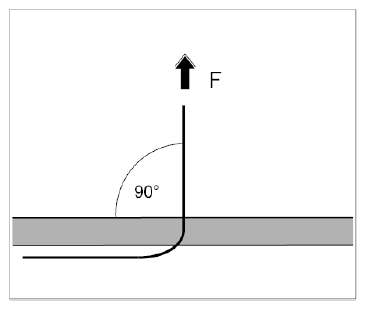

  Fig 1: Locating High Cutting Power Angle

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unfavorable angle (strong traction required)

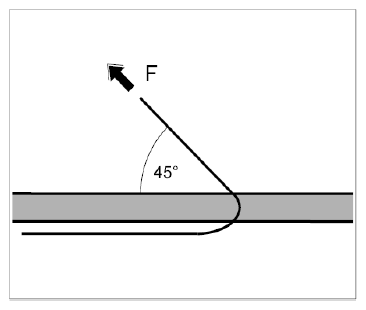

Fig 2: Locating Average Cutting Power Angle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Favorable angle (average traction required)

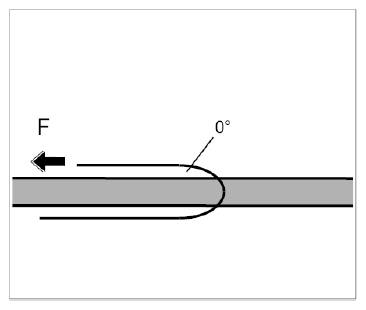

Fig 3: Locating Low Cutting Power Angle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Optimum angle (minimum traction required)
