Attaching Cutting Thread To The Body

  1. Attach the loose end of the cutting thread -B-  firmly at a suitable point on the body with the fastening screw -2-  of a component (e.g. wiper motor fastening). To do this, unscrew the fastening screw, wind the cutting thread -B-  around the screw and tighten the fastening screw again.

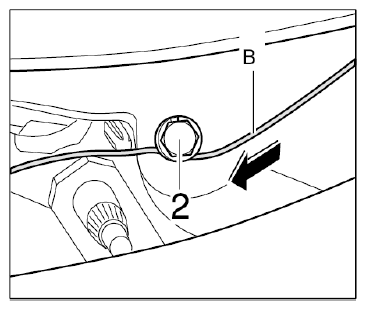

    Fig 1: Attaching Cutting Thread To Body
    G09824388Courtesy of PORSCHE CARS NORTH AMERICA, INC.
