Tools For Airbag Units And Belt Tensioners

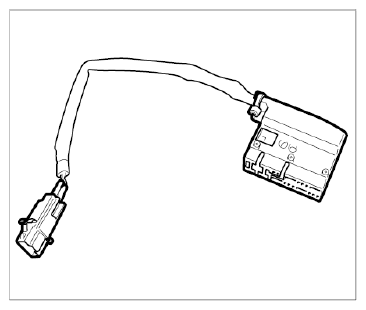

The ignition device 9257  is used for triggering the airbag units.

1. A  - Ignition device 9257
   Fig 1: Identifying Ignition Device 9257

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

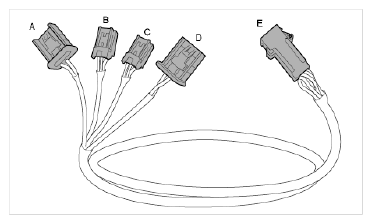

   The adapter cable 9257/4  is used for the driver's airbag.

2. B  - Marking A - adapter for 1st stage of driver's airbag unit
3. C  - Marking B - adapter for 2nd stage of driver's airbag unit
4. E  - Adapter for ignition device
   Fig 2: Identifying Driver's Airbag Adapter Cable 9257/4

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adapter cable of side airbag in the seat

Fig 3: Identifying Adapter Cable Of Side Airbag In Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

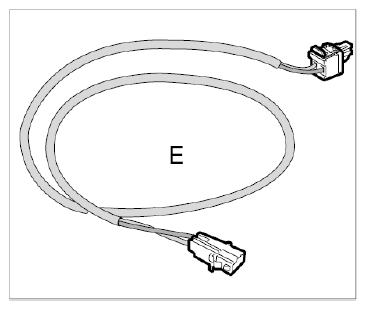

The adapter cable 9257/3 -E-  is used for the passenger's airbag, left side  .

Fig 4: Identifying Passenger's Airbag Adapter Cable - Left Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The adapter cable 9257/5  is used for the passenger's airbag, right side  .

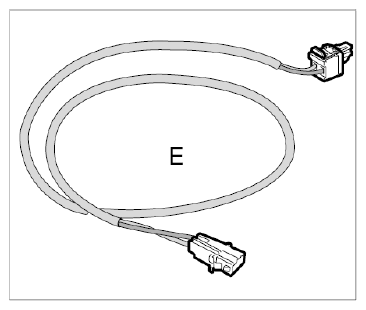

The adapter cable 9257/3 -E-  is used for the head airbag.

Fig 5: Identifying Head Airbag Adapter Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

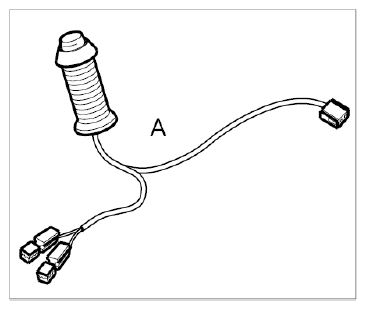

The adapter cable 9257/6  is used for the side airbag in the seat.

Fig 6: Identifying Adapter Cable Of Side Airbag In Seat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

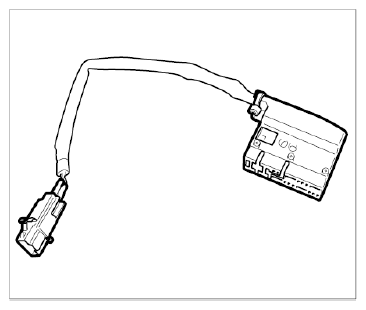

The adapter cable 9257/3 -E-  is used for the belt tensioner.

Fig 7: Identifying Belt Tensioner Adapter Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
