Side Airbag

Information

Before disconnecting the battery, move the seat to the uppermost position.

1. Unlock and separate the electrical plug for the seat.

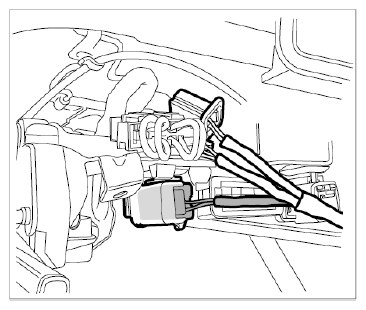

   Fig 1: Identifying Side Airbag Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect plug of adapter cable 9257/6 to the electrical plug for the seat.
3. Connect ignition device No. 9257 to the 2-pin plug of adapter cable No. 9257/6.
4. Place the ignition device in front of the vehicle through the door gap and trigger it.
