Belt Tensioner

Remove the side panel lining at rear. → REMOVING SIDE-PANEL LINING AT REAR

1. Connect plug of adapter cable 9257/3 to the belt tensioner.

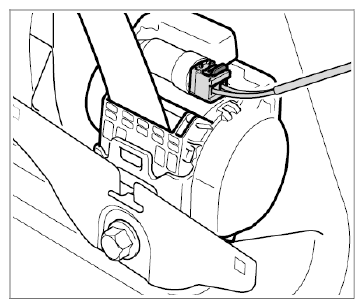

   Fig 1: Connecting Plug Of Adapter Cable 9257/3 To Belt Tensioner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect ignition device No. 9257 to the 2-pin plug of adapter cable No. 9257/3.
3. Place the ignition device in front of the vehicle through the door gap and trigger it.
