Removing rear impact pipe

Fig 1: Overview Of Rear Impact Pipe
G09824806Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo fastening screws -1-  .

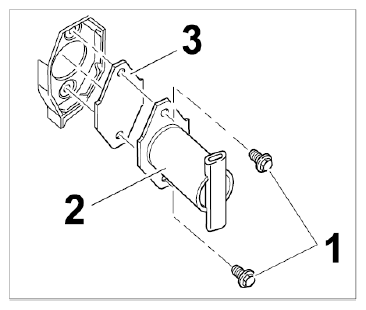

    Fig 2: Removing Impact Pipe
    G09824807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove the impact pipe -2-  with seal -3-  .
