Install rear impact pipe

Fig 1: Overview Of Rear Impact Pipe
G09824810Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position the impact pipe -2-  with seal -3-  .

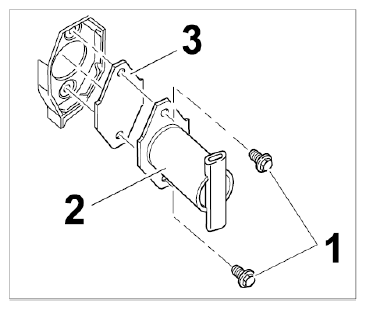

    Fig 2: Installing Impact Pipe
    G09824811Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in M8 x 30 fastening screws -1-  and tighten at tightening torque with → Fasten final tightening: 17 ftlb.  .
