Adjustment dimensions of rear retaining strip

Information

• To reduce adjustment work to a minimum when fitting the rear apron, the rear bumper and rear retaining strip must be aligned with the lower edge of the rear lid according to the dimensions shown.
• However, the precondition for precise positioning of the components is that the rear lid is optimally adjusted and correctly locked in the lock in accordance with the joining plan, before the rear bumper and rear retaining strip are fitted.

Information

All measurements refer to the position V = 280 mm  .

1. Adjust the rear lid according to the joining plan. → 5 Diagram - body gap dimensions

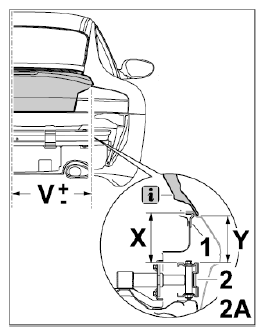

   Fig 1: Identifying Adjustment Dimensions Of Rear Bumper/Rear Retaining Strip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Adjust rear retaining strip -1-  with respect to the rear bumper -2, 2A-  to the dimension -X- → Adjustment value: 168 mm  . Dimensions can be changed by loosening the rear retaining strip. Dimension -Y- → Adjustment value: 166 mm
