Removing ornamental exhaust pipe

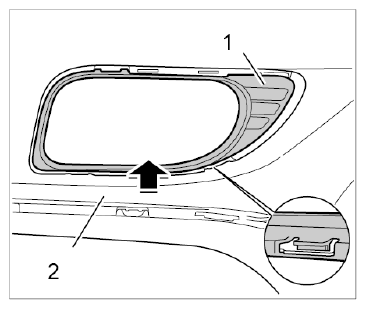

- Insert a screwdriver between the ornamental exhaust pipe -1-
and rear apron -2-
while at the same time releasing the locking lugs, and remove the ornamental exhaust pipe from the rear apron -arrow-
.
