Removing lower part of rear apron

  1. Unscrew fastening screw -3-  at the left and right between the lower part of the rear apron -1-  and the rear apron -2-  .

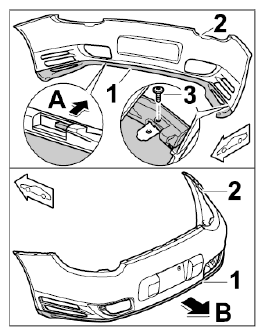

    Fig 1: Removing Lower Part Of Rear Apron
    G09824790Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert a screwdriver between the lower part of the rear apron -1-  and the rear apron -2-  while at the same time releasing the locking lugs -arrow A-  , and remove lower part of rear apron from the rear apron -arrow B-  .
