Removing air outlet grille

Information

• When removing the air outlet grille, do not remove the retaining clips by inserting the screwdriver between the retaining clip and the rear end ribs!
• Use new retaining clips for installation!

1. Move the retaining clips -2-  as far as possible to one side -arrow A-  and prise them open with a screwdriver -arrow B-  . Remove retaining clips -2-  .

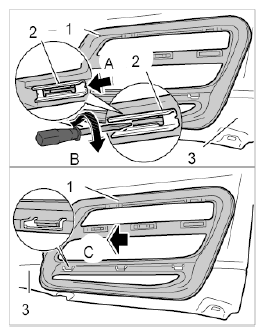

   Fig 1: Removing Air Outlet Grille

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert a screwdriver between the air outlet grille -1-  and rear apron -3-  and release the locking lugs.
3. Remove air outlet grille -1-  from the rear apron -3-  (-arrow C-  ).
