63 - Bumpers -- CARRERA (997)
>>
WM 635537 Disassembling And Assembling Rear Apron (Turbo Coupe, Turbo S Coupe, Turbo CABRIO, Turbo S CABRIO)
>>
Assembling rear apron
>>
Installing lower retaining strip
Installing lower retaining strip
Push on lower retaining strip
-1-
(
-arrow-
) and secure with rivets
-2-
.

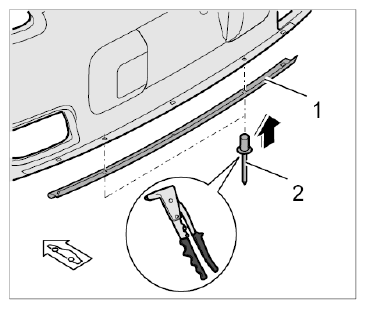

Fig 1: Installing Lower Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
