Installing lower part of rear apron

Information

If the lower part of the rear apron -1-  or the rear apron -2-  is replaced, a hole must be drilled in the marked area of the rear apron (crosshairs)  using a 4 mm drill bit.

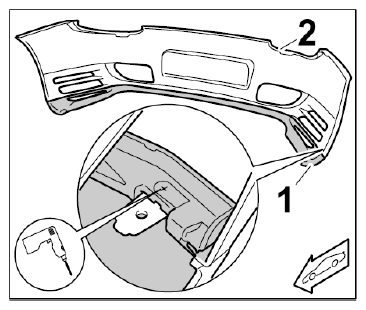

Fig 1: Identifying Hole In Rear Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Press lower part of rear apron -1-  into the rear apron -2-  (-arrow A-  ) until the locking lugs engage securely -arrow B-  .

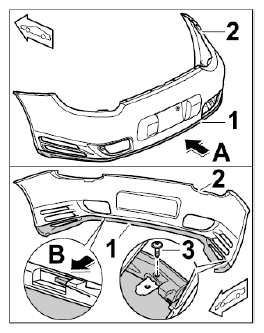

   Fig 2: Installing Lower Part Of Rear Apron

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw down fastening screw -3-  at the left and right between the lower part of the rear apron -1-  and the rear apron -2-  .
