Installing air outlet grille

  1. Position the air outlet grille -1-  on the rear apron -3-  , align it and press it on -arrow A-  until the locking lugs engage.

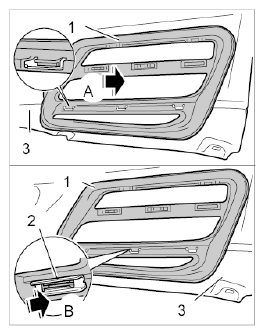

    Fig 1: Installing Air Outlet Grille
    G09824794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure the air outlet grille -1-  by pressing new retaining clips -2-  onto the rear apron -3-  (-arrow B-  ).
