Removing and installing holder for rear apron

  1. Remove holder for rear apron.

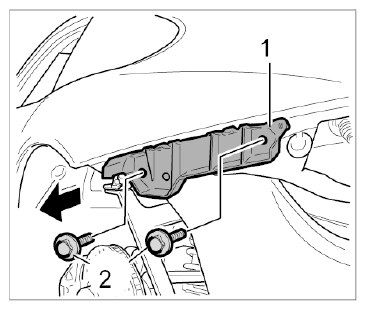

    Fig 1: Removing Holder For Rear Apron
    G09824777Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unscrew fastening screws -2-  and remove holder -1-  (-arrow-  ).
  2. Install holder for rear apron.

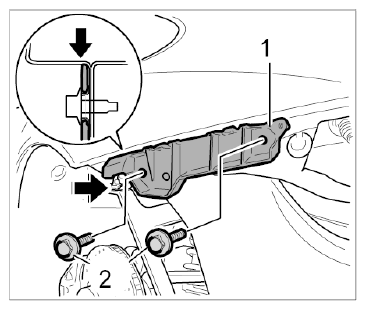

    Fig 2: Installing Holder For Rear Apron
    G09824778Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Position holder -1-  on the body -arrow-  so that it is flush with the side panel.
    2. 2.2. Tighten fastening screws -2-  . → Tightening torque: 10 Nm (7.5 ftlb.)
