Removing rear bumper: Notes

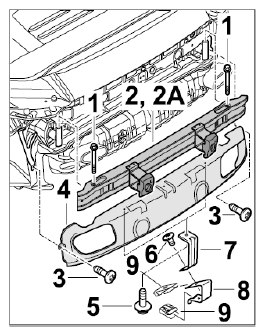

Fig 1: Overview Of Rear Bumper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew tapping screws -3- and fastening screws -1- and remove rear bumper -2- or (USA/Canada version) -2A- with lower centre heat shield fitted -4- .

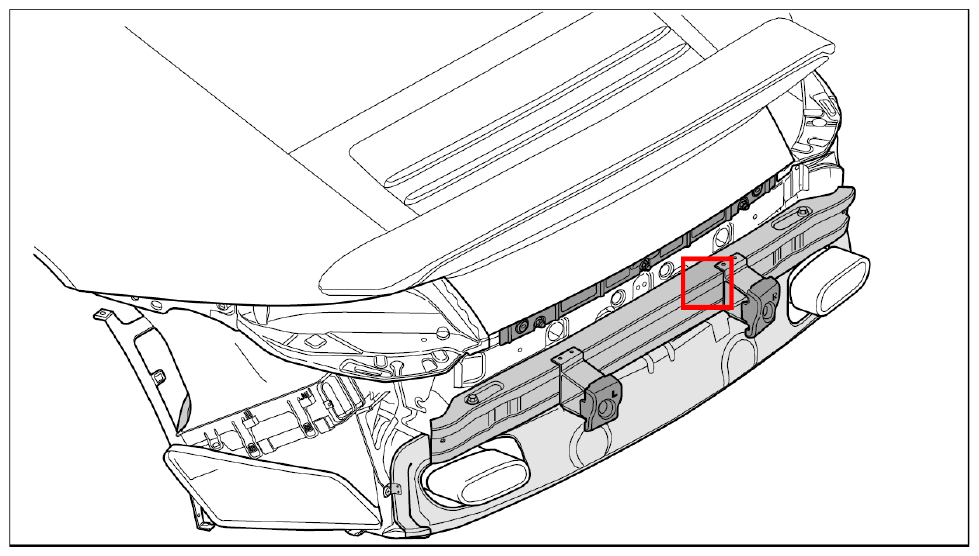

Fig 2: Removing Rear Bumper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -5- and take off lower centre heat shield -4- and rear support -7- . Disassemble rear support -7- if necessary by unscrewing the fastening screws -6- . Remove connecting angle -8- and speed nuts -9- .
