Installing heat shield at the sides

  1. Position heat shield at the sides -2-  (-arrow-  ) and secure with the fastening nuts -1-  . → Tightening torque: 3.5 Nm (2.5 ftlb.)

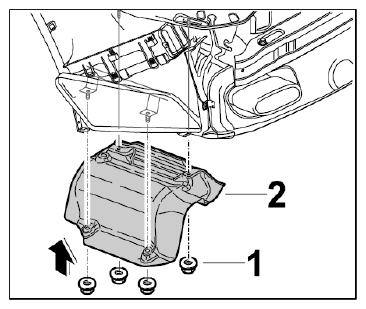

    Fig 1: Installing Heat Shield At Sides
    G09824768Courtesy of PORSCHE CARS NORTH AMERICA, INC.
