Adjustment dimensions of the bumper

Information

• To reduce adjustment work to a minimum when fitting the rear apron, the rear bumper and rear retaining strip must be aligned with the lower edge of the rear lid according to the dimensions shown.
• However, the precondition for precise positioning of the components is that the rear lid is optimally adjusted and correctly locked in the lock in accordance with the joining plan, before the rear bumper and rear retaining strip are fitted.

Information

All measurements refer to the position V = 280 mm  .

1. Adjust the rear lid according to the joining plan. → 5 Diagram - body gap dimensions

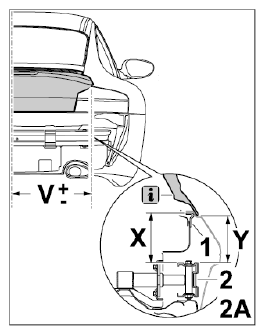

   Fig 1: Identifying Adjustment Dimensions Of Bumper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Adjust both sides of rear bumper -2, 2A-  to dimension -Y- → Adjustment value: 166 mm  . The measurements can be changed by loosening and moving the impact pipes and impact absorbers (Canada version).
3. Adjust rear retaining strip -1-  according to dimension -X- → Adjustment value: 168 mm  .
