Removing front impact pipe

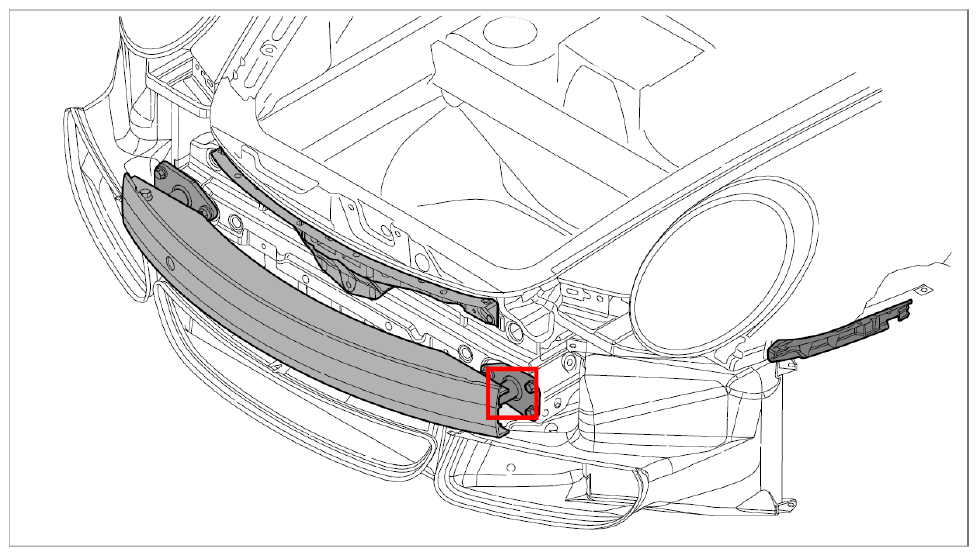

Fig 1: Overview Of Front Impact Pipe
G09824760Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo fastening screws -1-  .
  2. Remove the impact pipe -2-  and seal -3-  .

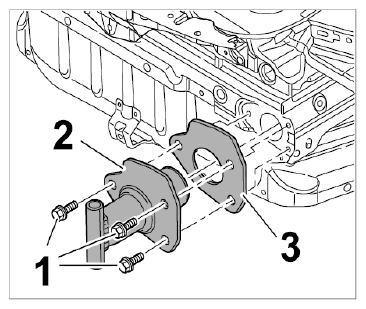

Fig 2: Removing Front Impact Pipe
G09824761Courtesy of PORSCHE CARS NORTH AMERICA, INC.
