Install front impact pipe

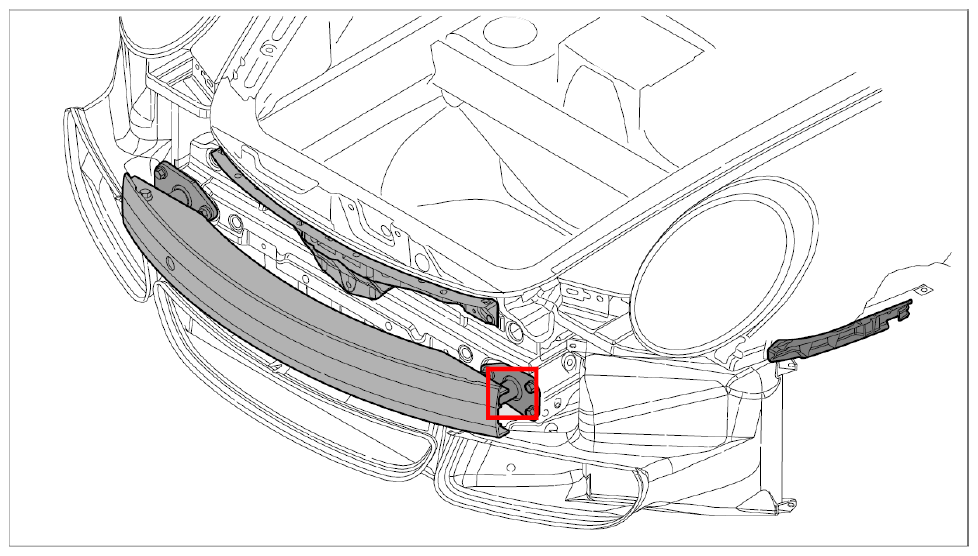

Fig 1: Overview Of Front Impact Pipe
G09824762Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position the seal impact pipe -3-  and impact pipe -2-  .

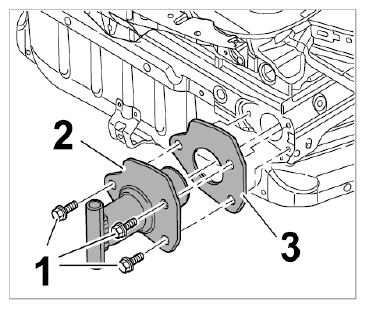

    Fig 2: Identifying Front Impact Pipes
    G09824763Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in fastening screws M8 x 30 -1-  and tighten using tightening torque → Final tightening: 17 ftlb.  .
