63 - Bumpers -- CARRERA (997)
>>
WM 631719 Removing And Installing Front Retaining Strip (All Models)
>>
Removing front retaining strip
Removing front retaining strip

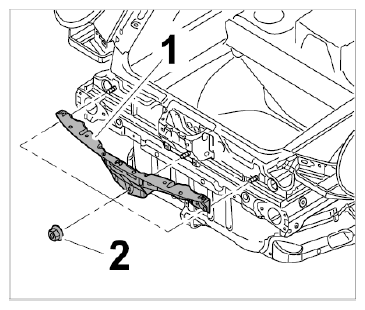

Fig 1: Overview Of Front Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nuts
-2-
and remove front retaining strip
-1-
.

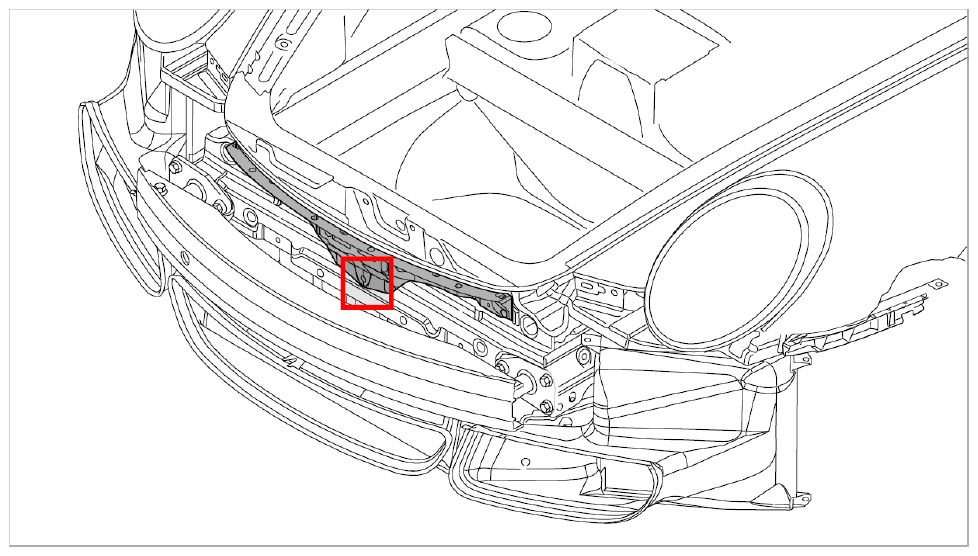

Fig 2: Identifying Front Retaining Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
