Installing front retaining strip: Notes

  1. Position front retaining strip -1-  on the body and tighten down slightly with the fastening nuts -2-  .

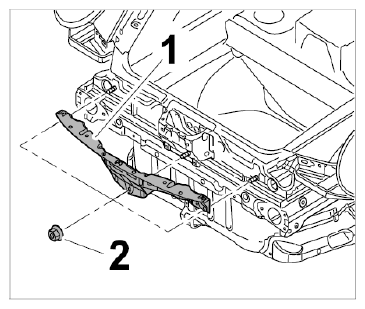

    Fig 1: Installing Front Retaining Strip
    G09824752Courtesy of PORSCHE CARS NORTH AMERICA, INC.
