Removing lower part of centre cover

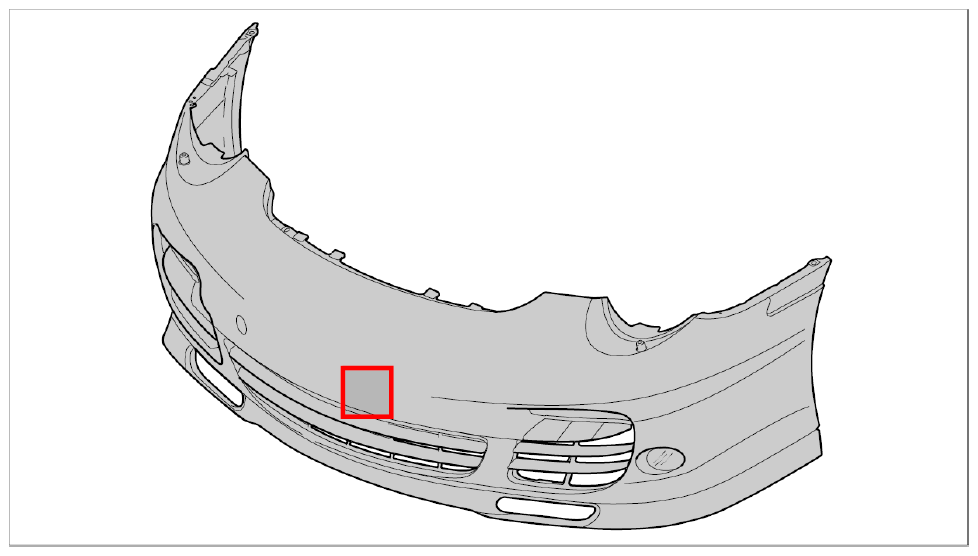

Fig 1: Overview Of Front Apron
G09824739Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull lower part of centre cover -1-  out of the front apron -2-  .

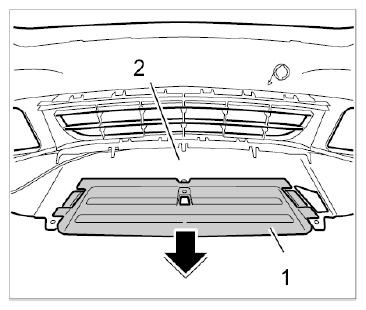

    Fig 2: Removing Lower Part Of Centre Cover
    G09824740Courtesy of PORSCHE CARS NORTH AMERICA, INC.
