Removing fixing clip for wire harness

  1. Insert a screwdriver between the front apron -2-  and fixing clip -1-  and remove fixing clip -1-  (-arrow-  ).

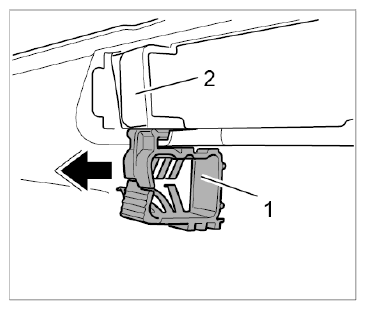

    Fig 1: Removing Fixing Clip For Wire Harness
    G09824742Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check fixing clip -1-  and replace it if necessary.
