Removing expander nut for number plate holder

  1. Press the expander nuts -2-  together and remove them from the front apron -1-  (-arrows-  ).

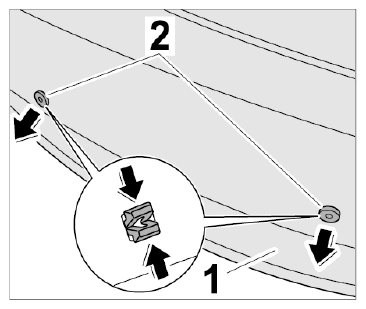

    Fig 1: Removing Expander Nut For Number Plate Holder
    G09824743Courtesy of PORSCHE CARS NORTH AMERICA, INC.
