Removing cap

  1. Carefully press out the cap -2-  with a screwdriver. Pull out the securing cord -3-  used to secure the cap -2-  to the front apron -1-  (-arrow-  ).

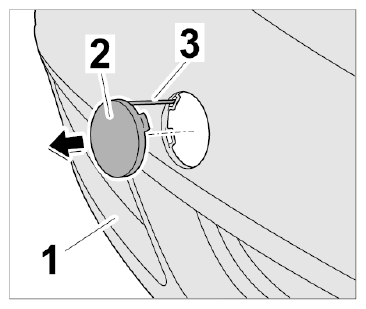

    Fig 1: Removing Cap
    G09824741Courtesy of PORSCHE CARS NORTH AMERICA, INC.
