Installing fixing clip for wire harness

  1. Position fixing clip -1-  on the front apron -2-  and press it in -arrow-  .

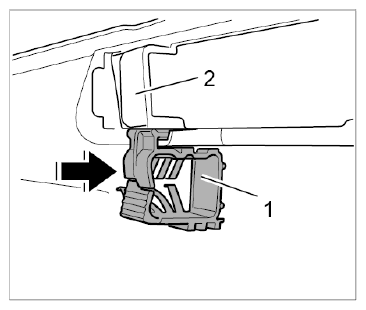

    Fig 1: Installing Fixing Clip For Wire Harness
    G09824747Courtesy of PORSCHE CARS NORTH AMERICA, INC.
