Installing cap

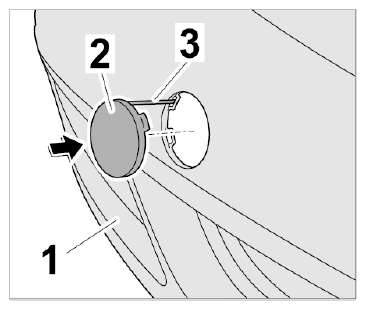

  1. Pull the securing cord -3-  into the eyelet on the front apron -1-  . Clip cap -2-  into the front apron -1-  (-arrow-  ).
    Fig 1: Installing Cap
    G09824748Courtesy of PORSCHE CARS NORTH AMERICA, INC.
