Undoing front apron underneath

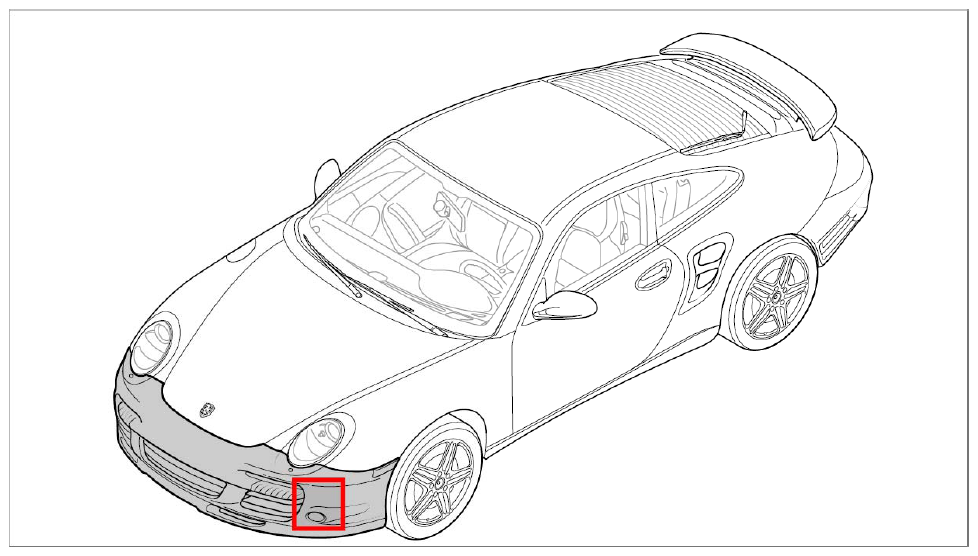

Fig 1: Identifying Front Apron
G09824724Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  underneath the front apron -2-  .

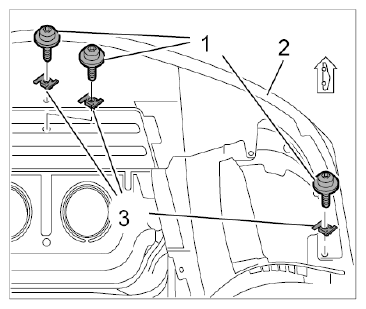

    Fig 2: Identifying Front Apron Underneath With Fastening Screws
    G09824725Courtesy of PORSCHE CARS NORTH AMERICA, INC.
