Loosening front apron at the top

  1. Secure locking mechanisms -1-  with assembly tool T10118  at the guides -2-  on the front apron in -arrowrichtung-  .

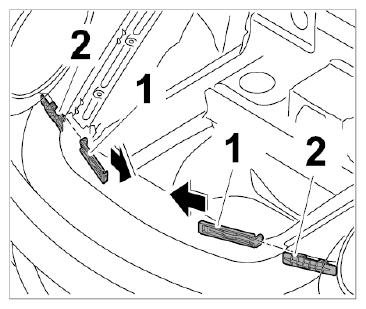

    Fig 1: Loosening Front Apron At Top
    G09824730Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  at the top of the front apron -2-  .

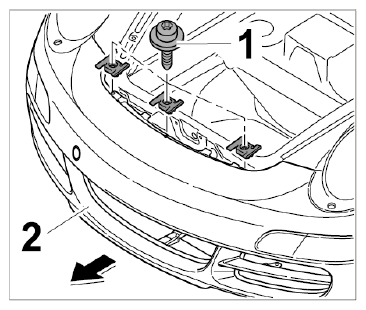

    Fig 2: Loosening Front Apron At Top
    G09824731Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove front apron -2-  by pulling it towards the front -arrow-  .
