Disconnecting plug connection for direction indicator light

  1. Release plug connection for direction indicator light -1-  in the left wheel housing area -arrow A-  and disconnect it -arrows B-  .

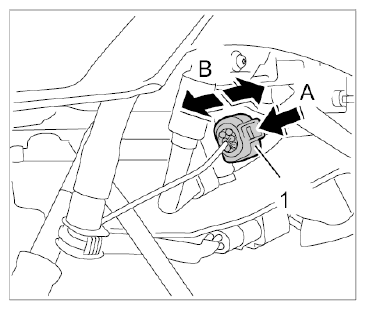

    Fig 1: Disconnecting Plug Connection For Direction Indicator Light
    G09824729Courtesy of PORSCHE CARS NORTH AMERICA, INC.
