Disconnecting hose for headlight cleaning system

Information

• Only for vehicles with headlight cleaning system.

Information

• A tight hose can be pulled off more easily if it is heated with a hot-air gun!
• Collect windscreen washer system fluid using a suitable container.

1. Pull hose -1-  out of the body in the left wheel housing area -arrow A-  .

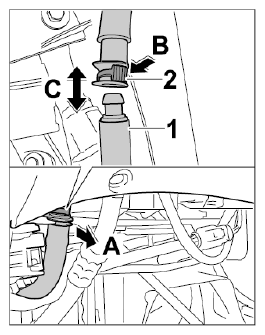

   Fig 1: Disconnecting Hose

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release the hose -1-  by pressing in the lock -2-  (-arrow B-  ) and disconnect it -arrow C-  .
