Disconnecting front apron plug connection

  1. Release front apron plug connection -1-  in the right wheel housing area -arrow A-  and disconnect it in -direction of arrow B-  .

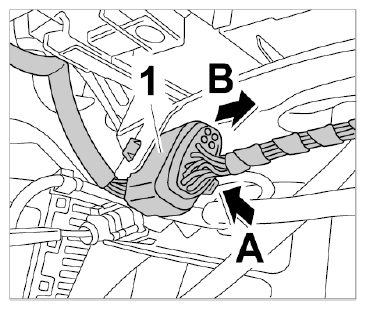

    Fig 1: Disconnecting Front Apron Plug Connection
    G09824727Courtesy of PORSCHE CARS NORTH AMERICA, INC.
