Securing front apron underneath

  1. Secure front apron -2-  underneath using the fastening screws -1-  . → Tightening torque: 2.8 Nm (2 ftlb.)

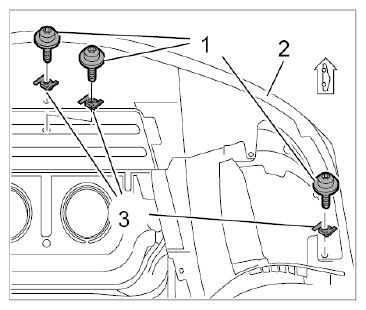

    Fig 1: Securing Front Apron Underneath
    G09824738Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check gap dimensions at the front lid, wing and main headlights. Loosen fastening screws if necessary and adjust gap dimensions by moving the front apron. → 5 Diagram - body gap dimensions
