Securing front apron at the top

Information

• Ensure water and electrical lines are laid properly.

1. Check retaining strip for front apron and replace it if necessary. → Installing front retaining strip .
2. Check speed nuts -3-  and replace them if necessary.
3. Position the front apron -2-  on the body at the front.

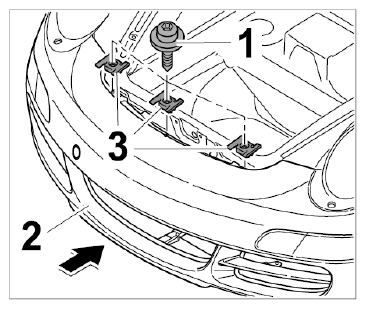

   Fig 1: Securing Front Apron At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Secure front apron -2-  at the top using the fastening screws -1-  . → : 2.8 Nm (2 ftlb.)
5. Insert locking mechanisms -1-  at the guides -2-  of the front apron and lock in -direction of arrow-  using a plastic wedge.

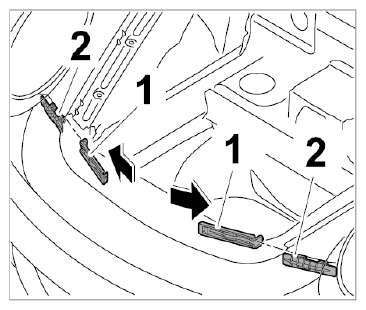

   Fig 2: Securing Front Apron At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
